Product Overview
Removable Fire Protection for Installed Components

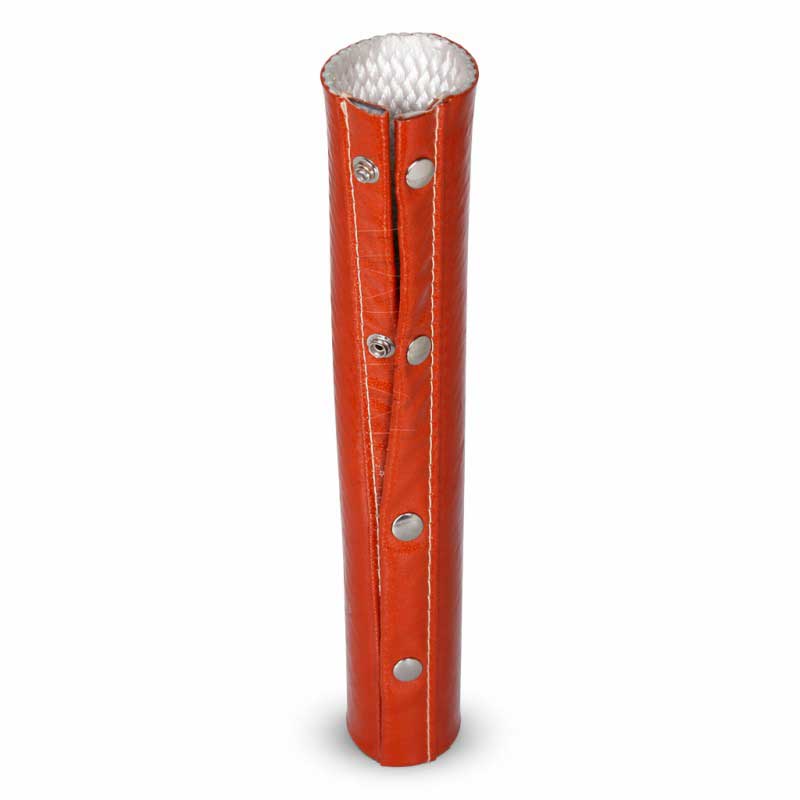

LXHTR Snap Closure Fire Sleeves are designed for hydraulic hoses, industrial pipes, cables and wiring systems that cannot be disconnected during installation. Constructed from a high-bulk fiberglass sleeve coated with thick silicone rubber and secured by metal snap fasteners, these sleeves provide reliable thermal protection while allowing quick installation, inspection and maintenance.
Unlike standard fire sleeves that require components to be threaded through the sleeve before assembly, the snap closure design wraps directly around existing equipment, minimizing downtime and simplifying retrofit projects.
Core Design Features
-
Metal Snap Closure System — Durable metal snap fasteners provide secure mechanical locking even in environments exposed to molten splash, welding sparks and vibration.
-
Thick Silicone-Coated Fiberglass Construction — Combines excellent thermal insulation with flame resistance, helping protect hoses, cables and pipes from radiant heat and direct flame exposure.
-
Easy Retrofit Installation — Wrap-around design allows installation on existing equipment without disconnecting hydraulic lines, cables or pipe assemblies.
-
Re-Openable for Maintenance — The sleeve can be repeatedly opened and closed for inspection, servicing or replacement, reducing maintenance time.
Key Advantages
-
Protects Hydraulic Hoses from Extreme Heat — Helps reduce hose failure caused by radiant heat and direct flame exposure.
-
Resistant to Molten Metal Splash — Widely used in steel mills and foundries where molten splash protection is critical.
-
Extends Equipment Service Life — Reduces maintenance costs and improves operational safety.
-
Suitable for Multiple Industrial Applications — Can be used for hoses, cables, fuel lines and pipe protection.
-
Easy to Cut and Install — Flexible sleeve design simplifies on-site installation and maintenance.
Technical Specifications
|
Item |
Value |
|
Model |
FS-SF |
|
Material |
Fiberglass + Silicone Rubber |
|
Operating Temperature |
500℉（260℃） |
|
Short Term Exposure |
3000℉（1560℃） |
|
Color Options |
Standard Color: Iron Oxide Red. Optional Colors: Blue, Black, Yellow, Gray, and other custom colors available upon request |
|
Inner Diameter |
6 mm–160 mm (0.24"–6.30") |
|
Roll Length |
20 m/roll (65.6 ft/roll) for ID 6–75 mm (0.24"–2.95")
15 m/roll (49.2 ft/roll) for ID 80–100 mm (3.15"–3.94")
10 m/roll (32.8 ft/roll) for ID 105–150 mm (4.13"–5.91")
|
|
Available Options |
Custom roll lengths to reduce waste; cut-to-length service; custom logo printing and private labeling available. |
|
Application |
Hose / Cable / Pipe Protection |
Standards & Compliance
LXHTR Silicone Fire Sleeve is manufactured using high-quality fiberglass and silicone rubber materials suitable for demanding industrial thermal protection applications. Material compliance documents and test reports can be provided upon request.
|
Item |
Details |
|
Material Compliance |
RoHS and REACH compliant material options available |
|
Flame Resistance |
Available upon request |
|
Material Test Reports |
Available upon request |
|
UL-Recognized Material Options |
Available for selected material configurations |
|
Quality Management |
Manufactured under controlled production processes |
|
Custom Testing Support |
Available based on project requirements |
Typical Applications
-
Hydraulic Hose Protection — Protects hydraulic hoses from radiant heat, flame exposure and mechanical damage in heavy-duty equipment.
-
Steel Mills — Provides reliable protection against molten metal splash and extreme temperatures commonly found in steel production facilities.
-
Foundries — Helps extend hose and cable service life in casting and metal processing operations.
-
Smelters and Metal Processing Plants — Reduces thermal exposure to critical fluid transfer and electrical systems.
-
Fuel and Oil Lines — Protects fuel hoses and fluid lines operating near engines, exhaust systems and other heat sources.
-

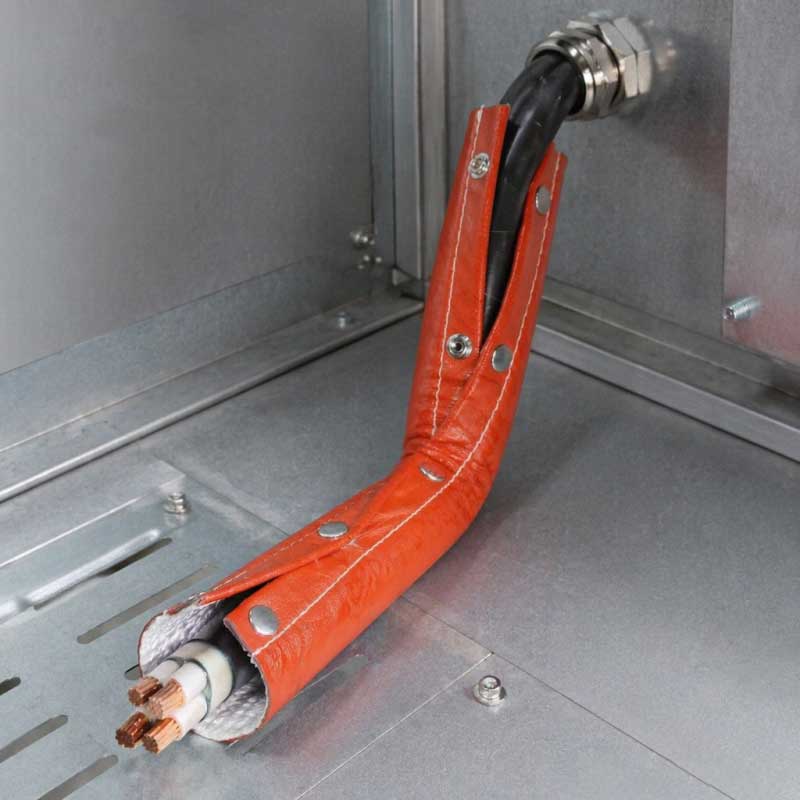

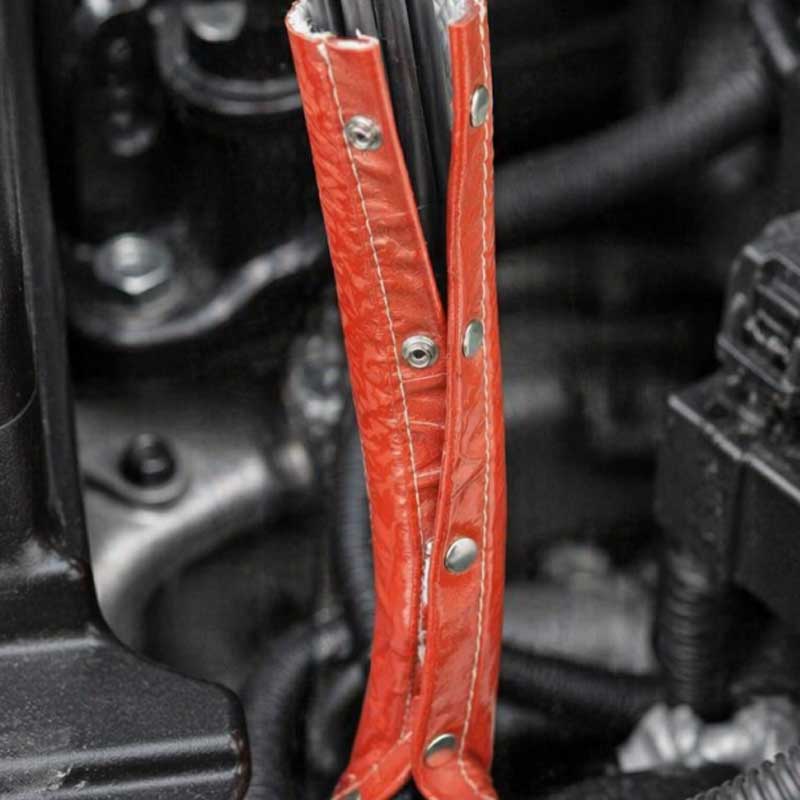

Industrial Cable & Wire Harness Protection — Improves thermal protection for cables, sensors and wire harness assemblies in high-temperature environments.
Typical Customization Services
|
Service |
Available |
|
Custom Inner Diameter |
✓ |
|
Custom Length |
✓ |
|
Custom Roll Length |
✓ |
|
Cut-to-Length Supply |
✓ |
|
Custom Colors |
✓ |
|
OEM Logo Printing |
✓ |
|
Private Label Packaging |
✓ |
Need a Custom Fire Sleeve Solution?
Contact our team with your hose size, operating temperature and application details. We will recommend the most suitable fire sleeve specification for your project.
Frequently Asked Questions
1. What is a silicone fire sleeve used for?
Silicone fire sleeves are used to protect hydraulic hoses, cables, fuel lines and pipes from high temperatures, flame exposure and molten metal splash.
2. What temperature can a silicone fire sleeve withstand?
The operating temperature depends on the material specification. Please refer to the technical specifications section.
3. Can silicone fire sleeves protect against molten metal splash?
Yes. The silicone-coated outer layer helps resist molten metal splash and reduces damage caused by high-temperature particles.
4. Are silicone fire sleeves suitable for hydraulic hoses?
Yes. They are widely used as hydraulic hose fire sleeves in steel mills, foundries, mining equipment and industrial machinery.
5. Can fire sleeves be used for electrical cables?
Yes. They are commonly used to protect cables, wire harnesses and sensor wiring in high-temperature environments.
6. What is the difference between a silicone fire sleeve and a standard fiberglass sleeve?
A silicone fire sleeve includes a silicone rubber coating that provides improved resistance to flame, molten splash, oil and abrasion.
