PTFE Flange Guard for Chemical Splash Protection

Product Overview

PTFE flange guards, also known as PTFE flange spray shields, are protective safety devices installed around flange connections, valves, and pipe joints to help contain and redirect accidental chemical leaks.

Manufactured from pure PTFE material, these flange spray shields provide outstanding resistance to acids, alkalis, solvents, and other aggressive chemicals commonly found in industrial processing environments.

For higher-risk chemical applications, an optional drain valve can be installed to safely direct leaked liquid into a collection container, minimizing environmental contamination and personnel exposure.

Suitable for chemical plants, pharmaceutical facilities, petrochemical refineries, battery manufacturing facilities, and water treatment systems.

Core Design Features

• PTFE Construction — Manufactured from premium PTFE material, the flange guard provides excellent resistance to corrosive chemicals, acids, alkalis, and solvents, ensuring reliable long-term protection in demanding industrial environments.

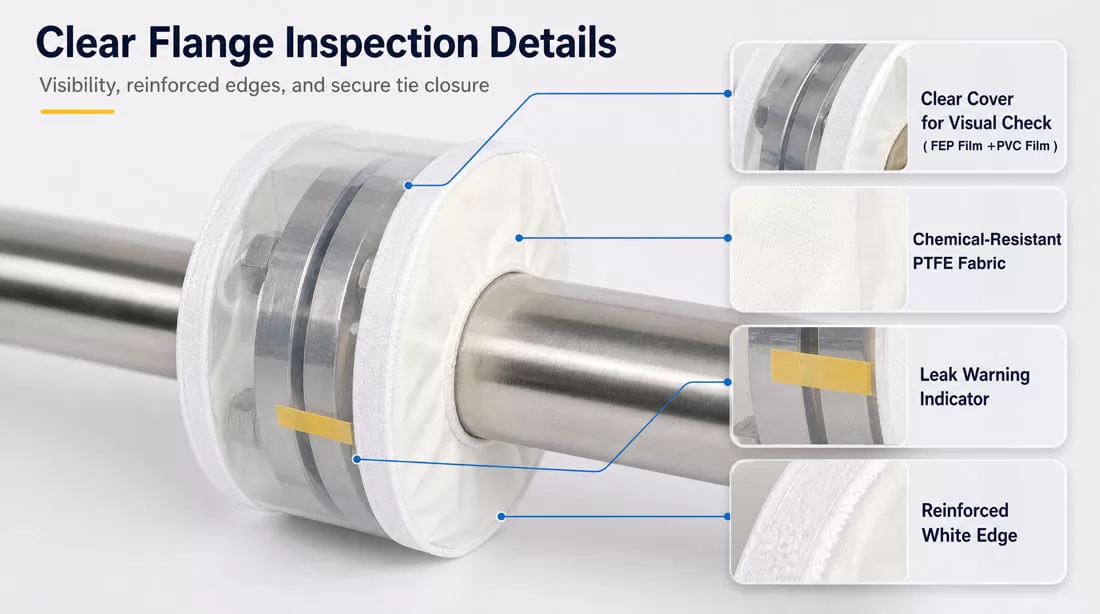

• Transparent Viewing Window — A dual-layer FEP and PVC inspection window allows operators to visually check flange conditions without removing the guard, improving maintenance efficiency and operational safety.
• Integrated Leak Detection Indicator — Built-in leak indicator paper provides an immediate visual warning when leakage occurs, helping maintenance teams identify and respond to potential hazards at an early stage.
• Chemical Spray Shield Protection — Designed to contain and redirect accidental liquid spray caused by flange leaks, helping reduce risks to personnel, equipment, and surrounding work areas.
• Optional Drain Valve System — An optional drain valve can be added to safely channel leaked chemicals into a collection container, minimizing environmental contamination and simplifying leak management.
• UV & Weather Resistant Design — Suitable for both indoor and outdoor installations, with a typical service life of up to 3 years indoors and 2 years outdoors under normal operating conditions.

Key Advantages

• Excellent Chemical Resistance — PTFE provides outstanding resistance to: Sulfuric Acid， Hydrochloric Acid， Nitric Acid，Phosphoric Acid，Sodium Hydroxide，Chlorine Solutions，Various Industrial Solvents. Prevents Hazardous Chemical Spray-Outs. The flange spray shield helps contain and redirect leaking chemicals, reducing risks to personnel working near pressurized piping systems.
• Early Leak Detection — Integrated leak indicator paper provides immediate visual warning of leakage, allowing corrective action before serious incidents occur.
• Easy Inspection Without Removal — The transparent FEP viewing window allows operators to visually inspect the flange connection without removing the protective shield.

Technical Specifications

Standard Dimensions

LXHTR PTFE flange guards can be customized to fit various flange standards, pressure classes, valve assemblies, and special piping configurations.

Typical Applications

• Chemical Processing Plants — Protection for acid, alkali, and solvent transfer systems.
• Petrochemical Facilities — Used as PTFE flange spray shields on process piping and storage systems.
• Pharmaceutical Manufacturing — Leak containment for corrosive fluid handling systems.
• Water Treatment Plants — Protection for chemical dosing pipelines and flange connections.
• Fertilizer & Chemical Production — Improves safety around corrosive chemical transfer pipelines.

Frequently Asked Questions

1. What is a PTFE flange guard?

A PTFE flange guard is a protective cover installed around flange connections to help contain accidental leaks and reduce hazardous chemical spray-outs.

2. What chemicals can PTFE flange guards resist?

PTFE offers excellent resistance to most industrial acids, alkalis, solvents, and corrosive chemicals.

3. Can I inspect the flange without removing the guard?

Yes. The transparent FEP/PVC viewing window allows quick visual inspection while the shield remains installed.

4. Is a drain valve available?

Yes. An optional drain valve system can be installed to safely direct leaked chemicals into a collection container.
