Product Overview
Silicone Fire Sleeve is a high performance fire resistant hose sleeve engineered for thermal protection in extreme industrial environments. It is widely used to protect hydraulic hoses, fuel lines, wire harnesses and cables from radiant heat, direct flame exposure and molten metal splash.

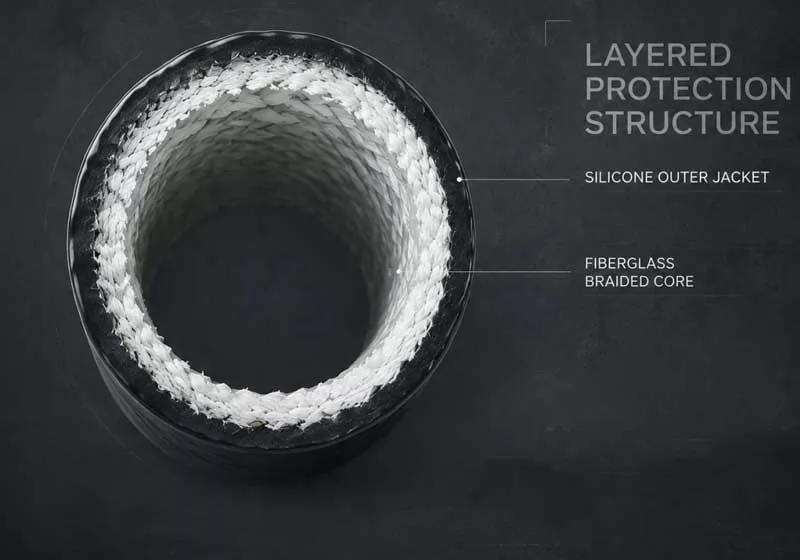

The sleeve is manufactured using tightly braided fiberglass yarn coated with specially formulated silicone rubber, providing excellent flexibility, insulation performance and long-term durability.
Compared with conventional hose protection sleeves, silicone fire sleeves offer superior resistance to high temperatures, oil contamination, abrasion and harsh operating conditions commonly found in steel mills, foundries, glass plants and heavy machinery systems.
Core Design Features
-
Braided Fiberglass Inner Layer — Provides excellent thermal insulation and mechanical strength for continuous high temperature applications.
-
Silicone Rubber Outer Coating — Offers superior resistance to flame, molten splash, oil, moisture and abrasion.
-
Flexible Sleeve Structure — Allows easy installation over hydraulic hoses, fuel lines and cable assemblies.
-
Industrial Grade Thermal Protection — Suitable for high heat environments requiring reliable hose and cable protection.
Key Advantages
-
Protects Hydraulic Hoses from Extreme Heat — Helps reduce hose failure caused by radiant heat and direct flame exposure.
-
Resistant to Molten Metal Splash — Widely used in steel mills and foundries where molten splash protection is critical.
-
Extends Equipment Service Life — Reduces maintenance costs and improves operational safety.
-
Suitable for Multiple Industrial Applications — Can be used for hoses, cables, fuel lines and pipe protection.
-
Easy to Cut and Install — Flexible sleeve design simplifies on-site installation and maintenance.
Technical Specifications
|
Item |
Value |
|
Model |
FS-SF |
|
Material |
Fiberglass + Silicone Rubber |
|
Operating Temperature |
500℉（260℃） |
|
Short Term Exposure |
3000℉（1560℃） |
|
Color Options |
Standard Color: Iron Oxide Red. Optional Colors: Blue, Black, Yellow, Gray, and other custom colors available upon request |
|
Inner Diameter |
6 mm–160 mm (0.24"–6.30") |
|
Roll Length |
20 m/roll (65.6 ft/roll) for ID 6–75 mm (0.24"–2.95")
15 m/roll (49.2 ft/roll) for ID 80–100 mm (3.15"–3.94")
10 m/roll (32.8 ft/roll) for ID 105–150 mm (4.13"–5.91")
|
|
Available Options |
Custom roll lengths to reduce waste; cut-to-length service; custom logo printing and private labeling available. |
|
Application |
Hose / Cable / Pipe Protection |
Standards & Compliance
LXHTR Silicone Fire Sleeve is manufactured using high-quality fiberglass and silicone rubber materials suitable for demanding industrial thermal protection applications. Material compliance documents and test reports can be provided upon request.
|
Item |
Details |
|
Material Compliance |
RoHS and REACH compliant material options available |
|
Flame Resistance |
Available upon request |
|
Material Test Reports |
Available upon request |
|
UL-Recognized Material Options |
Available for selected material configurations |
|
Quality Management |
Manufactured under controlled production processes |
|
Custom Testing Support |
Available based on project requirements |
Typical Applications
-

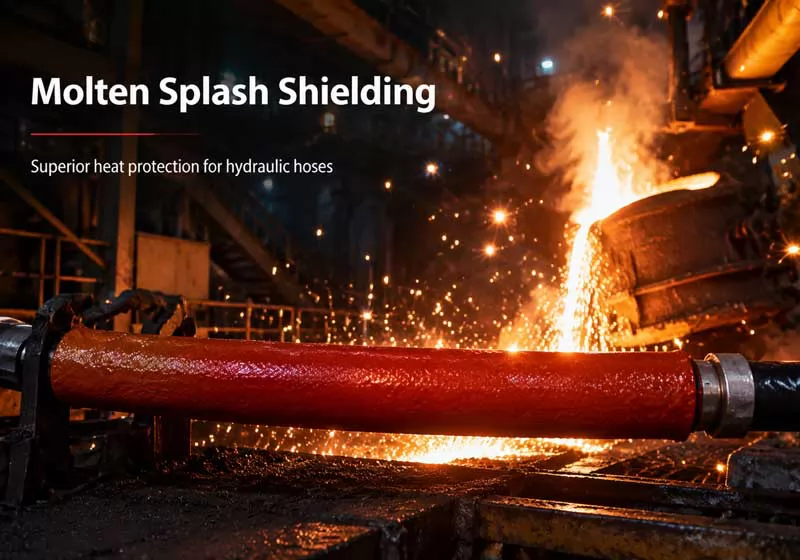

Hydraulic Hose Protection — Protects hydraulic hoses from radiant heat, flame exposure and mechanical damage in heavy-duty equipment.
-
Steel Mills — Provides reliable protection against molten metal splash and extreme temperatures commonly found in steel production facilities.
-
Foundries — Helps extend hose and cable service life in casting and metal processing operations.
-
Smelters and Metal Processing Plants — Reduces thermal exposure to critical fluid transfer and electrical systems.
-
Fuel and Oil Lines — Protects fuel hoses and fluid lines operating near engines, exhaust systems and other heat sources.
-
Industrial Cable & Wire Harness Protection — Improves thermal protection for cables, sensors and wire harness assemblies in high-temperature environments.
Typical Customization Services
|
Service |
Available |
|
Custom Inner Diameter |
✓ |
|
Custom Length |
✓ |
|
Custom Roll Length |
✓ |
|
Cut-to-Length Supply |
✓ |
|
Custom Colors |
✓ |
|
OEM Logo Printing |
✓ |
|
Private Label Packaging |
✓ |
Need a Custom Fire Sleeve Solution?
Contact our team with your hose size, operating temperature and application details. We will recommend the most suitable fire sleeve specification for your project.
Frequently Asked Questions
1. What is a silicone fire sleeve used for?
Silicone fire sleeves are used to protect hydraulic hoses, cables, fuel lines and pipes from high temperatures, flame exposure and molten metal splash.
2. What temperature can a silicone fire sleeve withstand?
The operating temperature depends on the material specification. Please refer to the technical specifications section.
3. Can silicone fire sleeves protect against molten metal splash?
Yes. The silicone-coated outer layer helps resist molten metal splash and reduces damage caused by high-temperature particles.
4. Are silicone fire sleeves suitable for hydraulic hoses?
Yes. They are widely used as hydraulic hose fire sleeves in steel mills, foundries, mining equipment and industrial machinery.
5. Can fire sleeves be used for electrical cables?
Yes. They are commonly used to protect cables, wire harnesses and sensor wiring in high-temperature environments.
6. What is the difference between a silicone fire sleeve and a standard fiberglass sleeve?
A silicone fire sleeve includes a silicone rubber coating that provides improved resistance to flame, molten splash, oil and abrasion.
