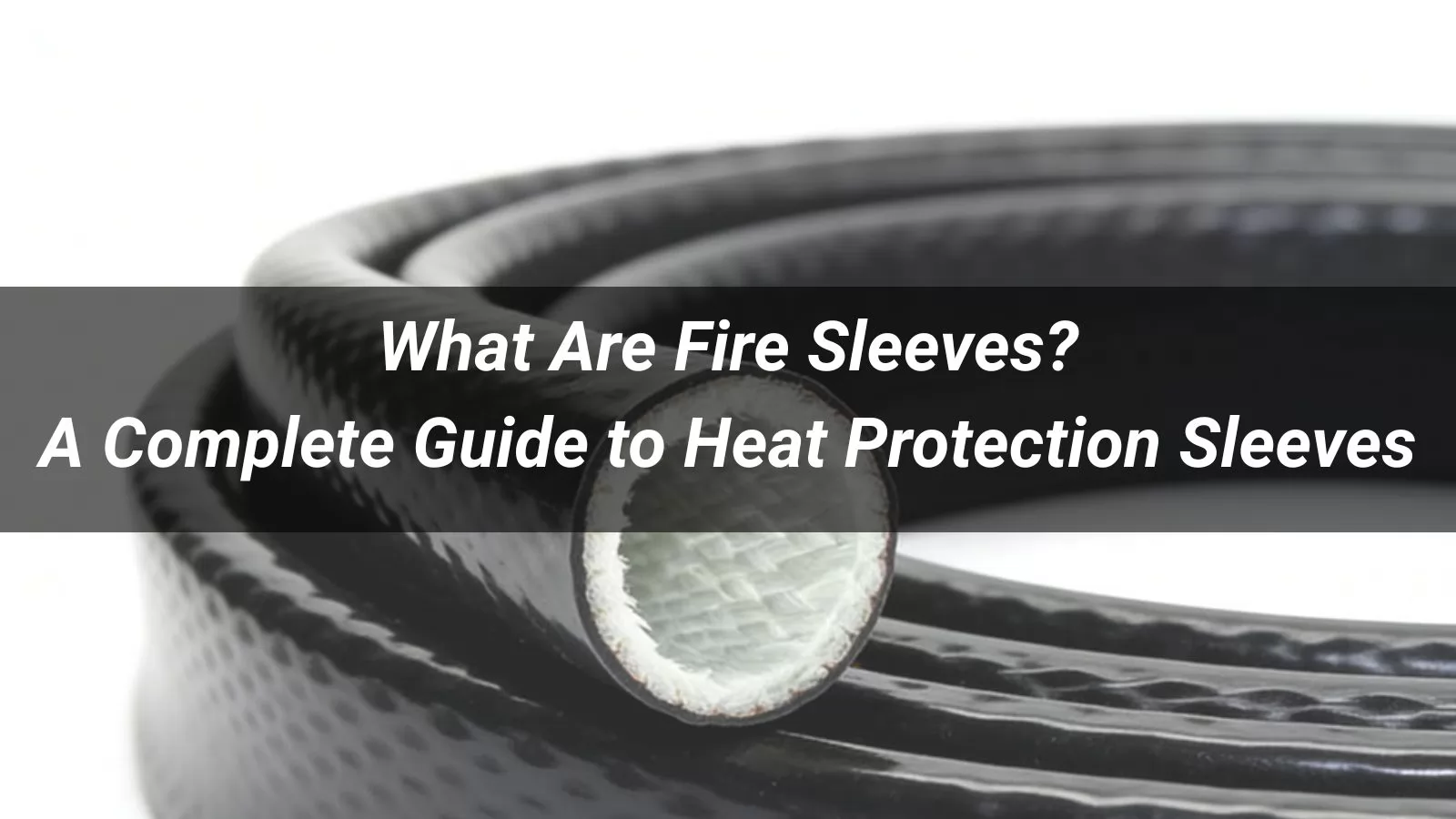

What Are Fire Sleeves? A Complete Guide to Heat Protection Sleeves

Fire sleeves (also called flame sleeves or heat protection sleeves) are protective coverings designed to shield hoses, cables, wires, and hydraulic lines from extreme heat, flames, and radiant energy. They act as a thermal barrier between sensitive components and hazardous heat sources.

How Do They Work?

Fire sleeves are typically made from fiberglass or silicone-coated fiberglass braiding. The outer silicone coating provides excellent resistance to direct flame exposure, while the inner fiberglass layer insulates and distributes heat away from the protected component. Together, they can withstand continuous temperatures up to 260°C (500°F) and brief exposure to flames exceeding 1000°C (1832°F).

Common Materials

The most widely used material is silicone-coated fiberglass, which offers a combination of flexibility, durability, and high-temperature resistance. Other variants include ceramic fiber sleeves for ultra-high-temperature environments, and aluminized sleeves that reflect radiant heat away from the protected surface.

Where Are They Used?

Fire sleeves are found in a wide range of industries and applications:

• Automotive & Motorsports: Protecting fuel lines, brake hoses, and wiring near exhaust systems and turbochargers.
• Aerospace: Shielding hydraulic and fuel lines in aircraft engines and landing gear systems.
• Industrial Manufacturing: Guarding cables and hoses near furnaces, welding equipment, and molten metal operations.
• Marine: Protecting engine room hoses from heat and potential fire exposure.
• Military: Used in vehicles and equipment that operate in high-risk thermal environments.

Key Benefits

Fire sleeves offer several important advantages over unprotected lines and cables:

• Prevent fires caused by fuel or hydraulic fluid contacting hot surfaces after hose failure.
• Extend the service life of hoses and cables by reducing heat-related degradation.
• Provide flexibility and ease of installation compared to rigid metal shields.
• Resist oil, chemicals, and abrasion in addition to heat.
• Comply with safety standards such as FAA, MIL-SPEC, and various automotive regulations.

Installation & Maintenance

Fire sleeves are generally easy to install. They are slipped over the hose or cable and secured at each end with stainless steel clamps, safety wire, or high-temperature tape. Regular inspection is recommended to check for signs of burning, cracking, or deterioration of the outer silicone coating, which may indicate that the sleeve needs replacement.

Choosing the Right Fire Sleeve

When selecting a fire sleeve, consider the maximum operating temperature of the environment, the diameter of the hose or cable to be protected, the required length, and any chemical or abrasion resistance needs. Always ensure the sleeve meets the relevant industry or regulatory standards for your specific application.
