Which Pipe Insulation Jacket Types Are Right for Your Application?

The global industrial insulation market is projected to exceed $12 billion by 2030, yet many piping systems still fail prematurely due to one overlooked component: the outer protective layer. Understanding pipe insulation jacket types is no longer optional—it is a critical factor in system longevity, energy efficiency, and maintenance cost control.

So which jacket should you choose? The answer depends on your operating temperature, environment, and maintenance needs. Here's a quick breakdown of the main options and who typically needs them:

• PVC & Plastic Jacketing — Ideal for indoor HVAC and chilled water lines where appearance and cleanliness matter.
• Aluminum Jacketing — The all-around workhorse for outdoor and industrial applications, balancing cost and durability.
• Stainless Steel Jacketing — Built for extreme heat, coastal corrosion, and aggressive chemical environments.
• ASJ / FSK Fabric Facings — Factory-laminated, cost-effective solutions for indoor commercial projects.
• Removable & Specialty Jackets — Reusable fabric covers designed for valves, flanges, and equipment requiring frequent access.

This guide focuses on the outer protective layer—the jacket—not the insulation core itself. Selecting the right combination of material, thickness, and form can mean the difference between a system that lasts five years and one that lasts twenty. Read on to find the best match for your application.

Table of Contents

• What Is a Pipe Insulation Jacket—and Why Does It Matter?
• Main Pipe Insulation Jacket Types Explained
• Which Pipe Insulation Jacket Works for Your Application?
• How Do You Choose the Right Thickness and Product Form?
• What Should You Consider Before Specifying Jacketing?
• Installation Basics That Protect Your Insulation System
• Pipe Insulation Jacket Types—Quick Selection Guide
• Conclusion

What Is a Pipe Insulation Jacket—and Why Does It Matter?

Imagine a steaming hot pipe in a busy factory or a chilled water line in a commercial basement. The insulation underneath is doing the hard work—but it’s the outer jacket that takes the hit. Rain, sunlight, forklifts, even curious hands—these all threaten the system. That’s where the pipe insulation jacket comes in.

Think of it as a protective armor for your insulation. Just as a smartphone case shields the device from drops and spills, a jacket shields the insulation from moisture, UV rays, and physical damage. Without it, even the best insulation loses performance fast.

In the industry, you’ll hear different terms depending on the region and application:

• Pipe jacketing or pipe lagging — common in the UK and industrial specs
• Insulation jacket pipe — often used when referring to the full assembly
• Tubing insulation jacket — typically for smaller-diameter lines or HVAC splits
• Pipe and valve insulation jackets — custom covers for fittings, flanges, and valves

Here’s why it matters in real life:

It’s not just about protection, though. In many facilities, the jacket also plays a role in appearance and code compliance. A clean aluminum or colored PVC finish looks professional—and in some jurisdictions, exposed insulation without proper jacketing isn’t just ugly, it’s out of spec.

So when we talk about pipe insulation and jacketing as a system, remember: the jacket isn’t optional. It’s the difference between a system that lasts five years and one that lasts twenty.

Request A Quote

Main Pipe Insulation Jacket Types Explained

Each jacket material has a specific set of strengths. Here's how the five main categories compare in practice.

1. PVC & Plastic Pipe Jacketing

A pvc pipe insulation jacket is the standard for indoor HVAC, chilled water, and clean-room environments. It installs quickly, wipes clean, and presents a neat white finish that architects and facility managers prefer for exposed ceilings.

Most contractors stock pvc pipe insulation jacket roll because it cuts easily on-site and seals with PVC tape or solvent weld. No special tools required.

The limitation is temperature. PVC softens above ~150°F (65°C) and degrades under direct UV. It's an indoor specialist—not suited for outdoor rooftop or high-heat lines.

Other plastic variants include hdpe pipe insulation jacket (better chemical resistance) and pu jacketing pipe (flexible, for irregular shapes). Useful in niche cases but not the default choice.

2. Aluminum Pipe Jacketing

An aluminum jacket for pipe insulation is the most widely used metal cladding globally. It handles outdoor exposure, moderate heat, and physical impact at a reasonable cost.

Two finishes dominate: mill finish (smooth, reflective) and stucco embossed (textured, hides dents). For outdoor work, stucco is the typical pick.

The detail that matters most is the backing. Quality aluminum pipe jacketing includes a factory-applied moisture barrier—poly film or asphalt-kraft—that blocks Corrosion Under Insulation (CUI). This barrier is not optional on steam or exterior lines.

The same material grade doubles as an aluminum jacket for duct insulation, making it a practical stock item for contractors handling both piping and ductwork. Standard gauges run 0.016"–0.024"; step up to 0.032" in high-abuse areas.

3. Stainless Steel & Metal Pipe Insulation Jacketing

When corrosion or extreme heat is the concern, stainless steel pipe jacketing is the answer. Coastal plants, chemical facilities, and food-processing washdown areas all demand 304 or 316 stainless.

The cost is three to five times that of aluminum, but the service life justifies it in aggressive environments. Galvanized steel (metal clad pipe insulation) offers a lower-cost alternative where corrosion risk is moderate.

For specialized needs, venture clad pipe insulation combines metal and polymer layers for enhanced vapor sealing—common in pharma and semiconductor specs. Installation requires more skill and heavier tooling, but the performance is unmatched.

4. ASJ / FSK Fabric Facings

An asj insulation jacket (All-Service Jacket) is a factory-laminated facing—vinyl or foil bonded to kraft paper with fiberglass scrim. It ships already attached to the insulation blanket, so there's no separate field-applied jacket step.

You'll find all service jacket pipe insulation in offices, schools, and retail builds. It's economical, quick to install, and the white facing brightens mechanical rooms. FSK (Foil-Scrim-Kraft) is the foil-faced variant with slightly better temperature tolerance.

The hard limit: ASJ is indoor-only. The kraft paper layer fails in wet or exterior conditions. For outdoor lines, pair it with a separate metal or PVC jacket, or choose a different insulation system.

5. Removable & Specialty Jackets

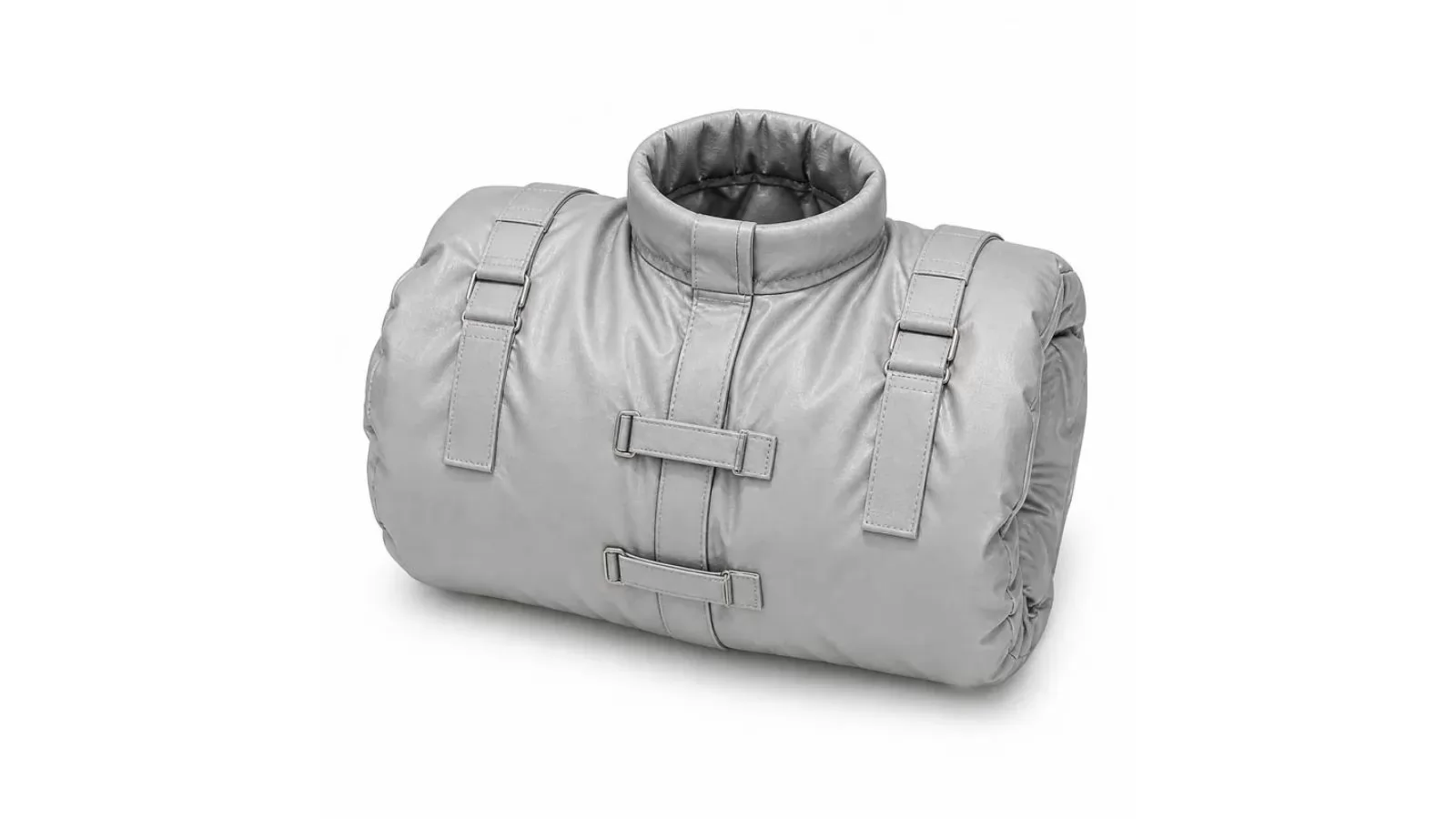

Removable pipe insulation jackets are fabric-based covers—silicone-coated fiberglass or similar—with hook-and-loop or lace closures. They wrap valves, flanges, and pumps that require periodic inspection. Unzip, inspect, re-zip. No cutting, no waste.

For fixed fittings, aluminum insulation fitting covers provide pre-formed elbows, tees, and end caps that match the straight-run jacket profile. No field-forming needed—select the part number and install.

Edge cases include hdpe pipe insulation jacket for buried lines and pu jacketing pipe for cryogenic or highly flexible applications. Niche, but essential when specified.

Quick Comparison: PVC vs. Aluminum vs. Stainless Steel

The table below summarizes the practical differences at a glance.

Match the jacket to the operating condition, not the other way around.

Request A Quote

Which Pipe Insulation Jacket Works for Your Application?

The fastest way to narrow your options is to start with where the pipe lives and what it carries. Here's the breakdown by real-world scenario.

Chilled Water & HVAC Lines

Indoor runs typically use ASJ-faced insulation or PVC jacketing. For chilled water pipe jacketing, the priority is vapor tightness—any breach lets humid air reach the cold surface and condensation follows. In mechanical rooms where appearance counts, PVC gives a clean, professional look. For hvac piping insulation in exposed ceilings, colored PVC also adds instant system identification.

Steam & High-Temperature Process

A steam pipe insulation jacket must handle sustained heat well above 250°F. Aluminum (0.024"+) is the baseline choice. In plants with frequent washdowns or corrosive exhaust, step up to stainless. The jacket must also accommodate thermal expansion—more on that in the installation section.

Outdoor & Rooftop Piping

An outdoor pipe insulation jacket faces UV, rain, wind-driven rain, and freeze-thaw cycles. Metal is the default. Aluminum with a moisture barrier backing handles most climates. In coastal or industrial zones, stainless is worth the premium. For any exterior pipe insulation jacket, seam orientation and sealant quality matter as much as the material itself—this is where many systems fail.

External Water Lines & Freeze Protection

For waterproof external water pipe insulation, you need a continuous metal shell with sealed seams and end caps. PVC is sometimes used outdoors on cold-water lines if it's UV-stabilized, but metal remains the safer long-term bet. Pair the jacket with adequate insulation thickness to prevent freezing during extended cold snaps.

High-Traffic & Mechanical Abuse Areas

In corridors, equipment rooms, and loading areas, pipes take hits from carts, ladders, and routine maintenance. Thicker metal pipe jacketing (0.032" or 0.040") or stainless resists denting. Where fiberglass insulation alone would crumble after a few impacts, the right jacket keeps the system intact for years.

How Do You Choose the Right Thickness and Product Form?

Once you've picked the material, two more decisions remain: how thick should the jacket be, and should you buy it in rolls, sheets, or pre-formed pieces?

Lagging Thickness by Material

For aluminum, common gauges are 0.016", 0.019", and 0.024". Light commercial and interior work sits at 0.016". General outdoor and industrial uses 0.019"–0.024". High-abuse or heavy-industrial specs call for 0.032"+. Stainless follows the same logic but costs significantly more per step up in gauge. PVC jacketing typically comes in nominal wall thicknesses rather than gauge—check the manufacturer's temp and impact ratings rather than guessing.

Product Form: Roll, Sheet, or Pre-Formed

A pvc pipe insulation jacket roll is the most versatile—cut to length on-site, wrap, seal. Aluminum and stainless also come in rolls for straight runs, but they require a brake or former to shape. Pre-cut sheets speed up installation on known pipe sizes. Pre-formed elbows, tees, and valve covers eliminate field fabrication entirely—they cost more per piece but save labor hours.

Installation Complexity

Plastic pipe jacket installs with basic hand tools—utility knife, tape, sometimes solvent. Metal pipe jacketing demands shears or nibblers, pop rivets or screws, sealant, and experience forming tight corners. Factor labor cost into your material decision. A slightly pricier pre-formed system can beat a cheaper roll option once you add installation time.

Request A Quote

What Should You Consider Before Specifying Jacketing?

Before locking in a spec, run through these five checks. They cover 90% of field failures.

1. Environment

Sun, salt, chemicals, and standing water each rule out certain jackets. Outdoor lines almost always call for metal. Coastal or chemical plants push you toward stainless. If the pipe lives indoors in conditioned space, PVC or ASJ is usually sufficient.

2. Mechanical Abuse

Map out forklift lanes, cart paths, and maintenance routes. If a pipe will be bumped monthly, skip thin aluminum. Step up to thicker metal pipe jacketing or stainless. The extra material cost beats repacking insulation after every dent.

3. System Purpose

Chilled water prioritizes vapor tightness. Steam prioritizes heat resistance and expansion allowance. Fire-rated assemblies may dictate specific jacket materials. Align the jacket with the system's primary job.

4. Access & Maintenance

Valves, strainers, and instruments need regular attention. Specify removable pipe insulation jackets here. For fixed fittings, use pre-formed covers. The goal is zero cutting during routine maintenance.

5. Codes & Project Specs

Local mechanical codes sometimes mandate specific jacket types for exterior piping or fire-rated assemblies. Verify before you buy. Retrofit projects are especially prone to surprise rework when specs are missed.

Installation Basics That Protect Your Insulation System

Even the best jacket fails if installed poorly. These six rules keep the system intact.

1. Start Dry

Never jacket over wet insulation. Trapped moisture guarantees mold, corrosion, and lost performance.

2. Mind the Seams

On horizontal runs, orient seams downward when possible—the classic watershed principle. On vertical runs, stagger seams so water can't track straight down.

3. Overlap Generously

Seams should overlap at least 2–3 inches. Outdoor joints need compatible sealant or tape on top of the mechanical closure.

4. Cover Every Transition

Valve and flange covers must overlap the straight-run jacket by at least 2 inches. Gaps here are the #1 entry point for water.

5. Allow for Movement

Metal expands and contracts with temperature swings. Use slotted holes, floating cleats, or leave controlled gaps at rigid supports so the jacket can move without buckling.

6. Skip the Sharp Edges

Deburr cut edges on metal jacketing. Installers and future maintenance crews will thank you—and avoid cut gloves and torn clothing.

Pipe Insulation Jacket Types—Quick Selection Guide

Use this flow to land on a sensible choice without overcomplicating the decision.

No single jacket wins every scenario. Match the material to the job, confirm the thickness, and follow solid installation basics—the rest takes care of itself.

Request A Quote

Conclusion

Choosing the right pipe insulation jacket type comes down to matching the material—PVC, aluminum, stainless steel, ASJ, or removable fabric—to your specific operating conditions, temperature range, and maintenance needs. The wrong choice leads to premature failure, energy loss, and costly rework, while the right jacket protects your insulation system and extends its service life for years.

As a China-based manufacturer specializing in high-temperature protection and thermal insulation, LXHTR engineers custom-fitted solutions including removable valve and pipe insulation jackets rated up to 1000°C. Whether you need a single prototype or a full-scale production run, our team works directly with your specifications to deliver reliable, reusable covers that fit complex geometries precisely.

Ready to specify the right jacket for your project? Visit https://www.lx-htr.com/ to explore our full product range or contact our engineering team today for a tailored quote. We respond quickly and ship worldwide.
