Flange Spray Shield
PTFE Flange Spray Shields for Corrosive Chemicals
Flanged connections are widely used in industrial piping systems. When gasket failure or bolt loosening occurs, hazardous fluids such as acids, alkalis, steam, or hot liquids may leak and spray outward under pressure.

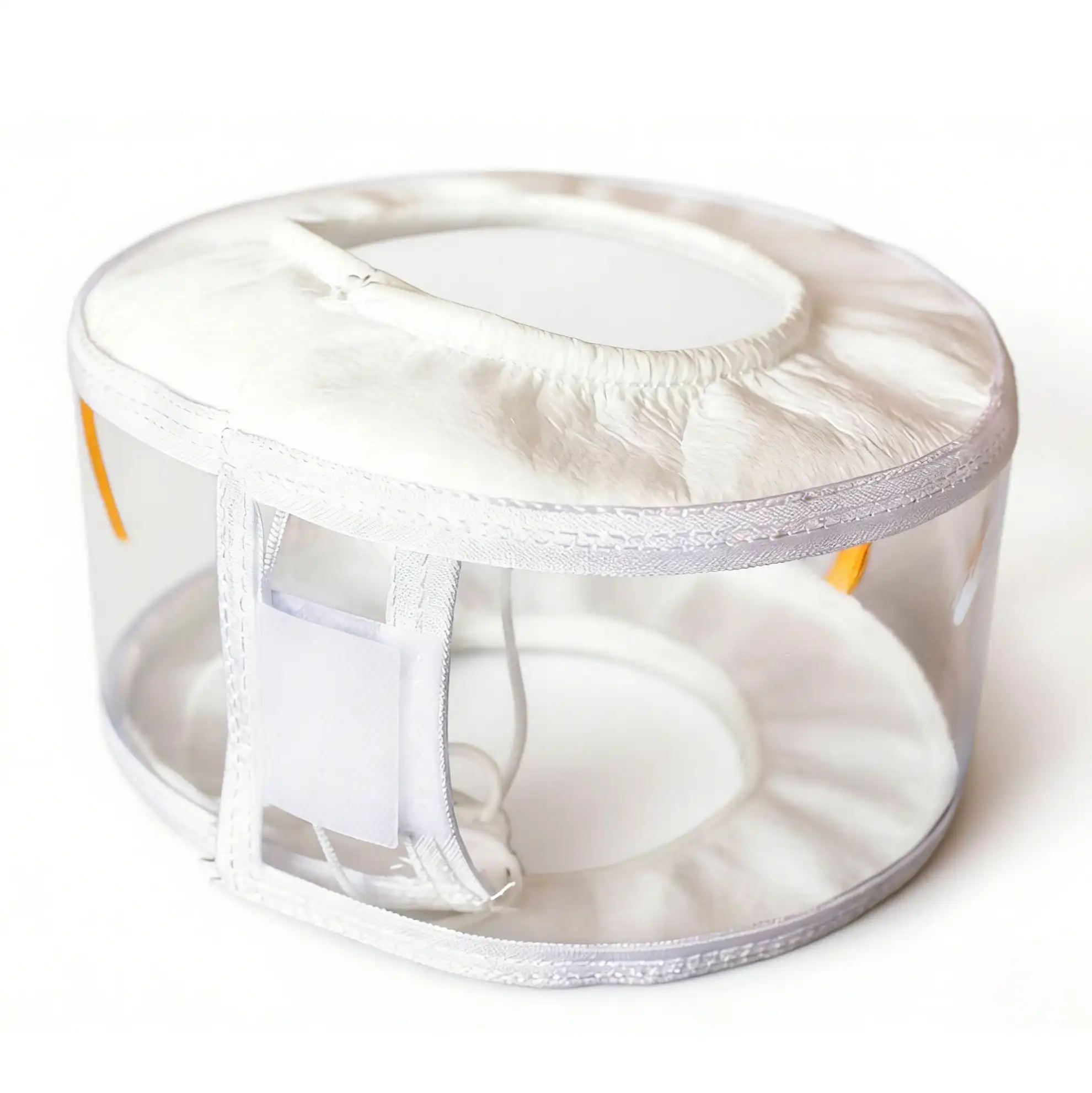

LXHTR Flange Spray Shields are designed to contain and redirect potential fluid spray from flange joints. Installed around the flange connection, the shield forms a protective barrier that helps prevent high-pressure spray from directly reaching nearby personnel or equipment.
The wrap-around design allows quick installation without disassembling the pipeline, providing a practical safety solution for industrial piping systems.
Key Advantages of Flange Spray Shields
- Leak Spray Containment: The shield helps contain and redirect fluid spray caused by flange leakage, reducing the risk of hazardous exposure.
- Enhanced Personnel Safety: Protects operators and nearby equipment from direct contact with leaking chemicals or hot fluids.
- Quick Installation: The flexible wrap-around design allows installation on existing flange joints without dismantling the pipeline.
- Chemical and Heat Resistance: Materials can be selected to withstand corrosive media, high temperatures, and harsh industrial environments.
- Adaptable to Various Flange Sizes: Spray shields can be customized to match different pipe diameters and flange types.
Core Design Features
01
Leak Containment Barrier
The shield forms a containment barrier around flange joints to limit the spread of leaking fluid spray.
02
Wrap-Around Installation Design
The flexible design allows the shield to be installed around existing flange connections without pipeline disassembly.
03
Industrial-Grade Materials
Materials can be selected based on chemical compatibility and operating temperature.
04
Lightweight and Durable Construction
Provides effective protection while maintaining easy installation and long service life.
Engineering Support & Customization
LXHTR provides customized flange spray shield solutions based on pipeline conditions and process requirements.
Customization options include:
- Flange diameter and bolt circle dimensions
- Material selection based on chemical compatibility
- High-temperature resistant structures
- Optional inspection windows
- Custom shields for pumps, valves, and complex piping connections
These solutions help facilities improve pipeline safety management and leak containment protection.
1.
Quote Project
LXHTR provides precise, application-specific quotes for flange spray shields, ensuring effective leak and splash protection for your industrial piping systems.
2.
Custom Design
Each flange spray shield is engineered to fit your flange type, pipeline configuration, and operating environment, providing reliable safety and containment.
3.
Fabrication
Durable PTFE and PVC materials are carefully selected to craft flange spray shields that resist chemicals and withstand demanding industrial conditions.
4.
Installation
Products are designed for easy on-site installation, ensuring proper fit and long-term pipeline leak and splash protection.
Typical Industrial Applications

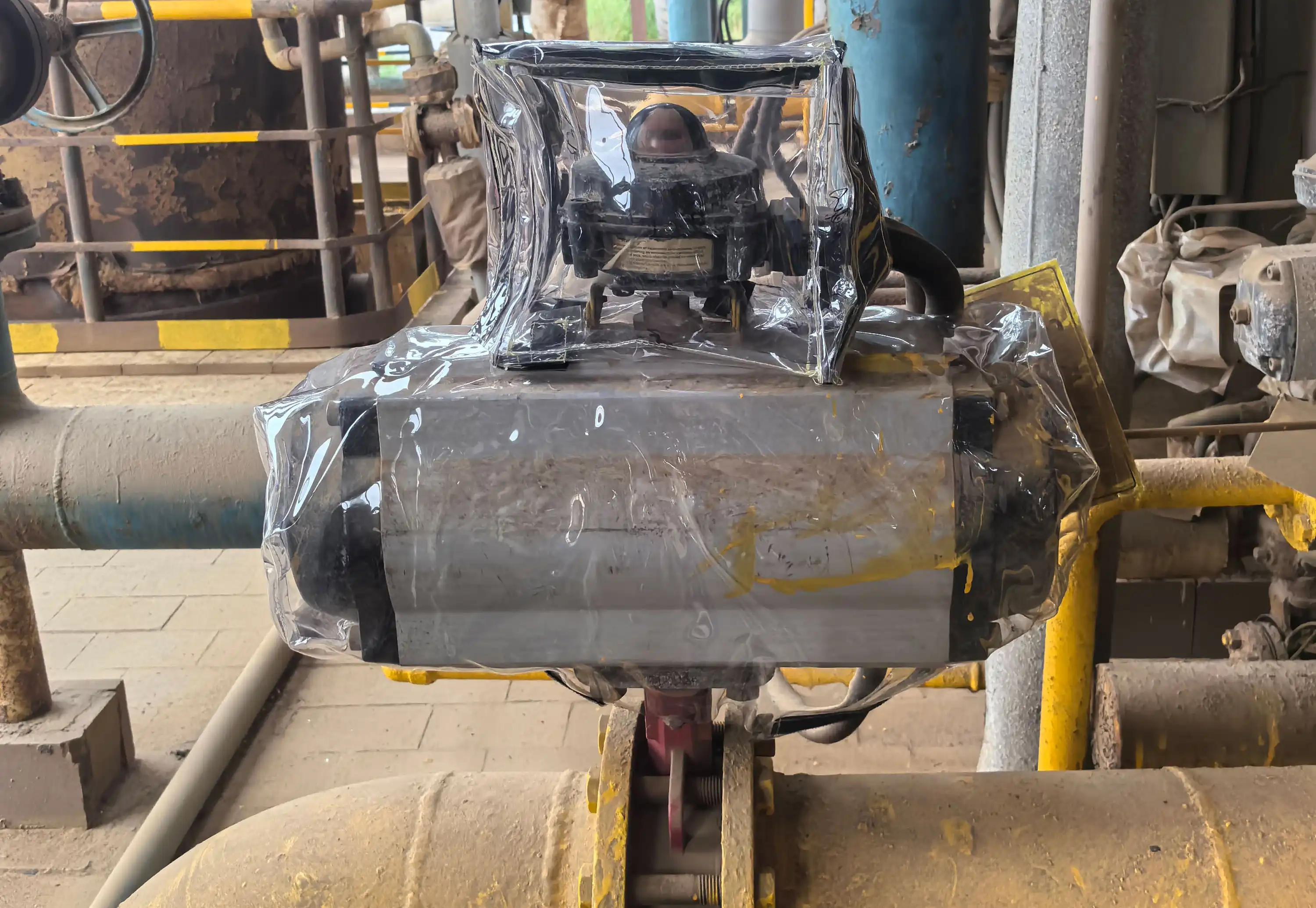

Flange spray shields are typically installed on flange joints within industrial piping systems that transport hazardous chemicals, corrosive media, steam, or high-temperature fluids. They are widely applied in chemical plants, metallurgical facilities, power generation plants, oil and gas processing units, and other heavy industrial environments. By containing and redirecting potential spray leaks from flange connections, spray shields help improve pipeline safety management and reduce the risk of personnel exposure to hazardous fluids.
Frequently Asked Questions About Flange Spray Shields
What is a flange spray shield?
A flange spray shield is a protective device installed around flange joints to contain and redirect hazardous fluid spray caused by leakage.
How does a spray shield improve safety?
It prevents leaking fluids from spraying directly outward, reducing the risk of chemical exposure or burns to personnel.
Can the spray shield be installed without removing the flange?
Yes. The wrap-around design allows installation without disassembling the pipeline.
What materials are available?
Common materials include PVC and PTFE, selected according to operating temperature, chemical compatibility, and the type of process media carried in the pipeline.
Are spray shields reusable?
Yes. Most shields can be removed and reused during inspection or maintenance.
