Ceramic Fiber Blanket
High-Performance Thermal Insulation Blanket for Extreme Heat Environments
Our ceramic fiber blanket is a high-efficiency ceramic fiber insulation blanket designed for demanding thermal environments up to 1260°C–1500°C. Manufactured from premium refractory materials, this refractory ceramic fiber blanket delivers excellent heat resistance, low thermal conductivity, and superior energy-saving performance.

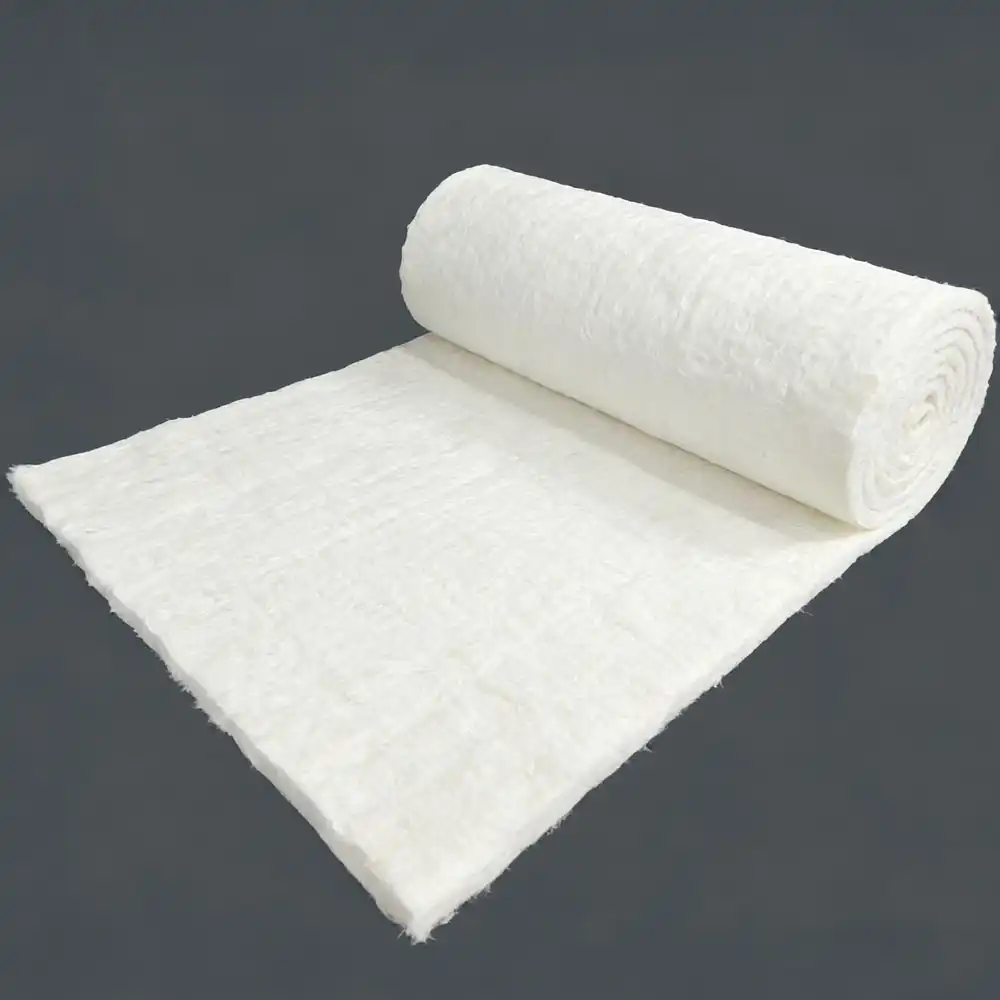

Available in flexible ceramic fiber blanket rolls, it is widely used for furnaces, kilns, pipelines, and other high-temperature equipment. As one of reliable ceramic fiber blanket manufacturers, LXHTR also offers bio soluble ceramic fiber blanket options for improved environmental and safety compliance.
Technical Specifications of Ceramic Fiber Blanket
To help you select the most suitable ceramic fiber blanket insulation for your application, we provide detailed technical data covering temperature ratings, density, thickness, and key performance indicators.
Our ceramic fiber insulation blanket is available in multiple grades, including standard and bio soluble ceramic fiber blanket, with flexible formats such as ceramic fiber blanket roll for easy installation.
| Property | Standard 1050 | Standard 1260 | Low Zirconia 1300 | Zirconia 1450 | Biodegradable AES 1260 |
|---|---|---|---|---|---|
| Classification Temperature | 1050°C (1922°F) | 1260°C (2300°F) | 1300°C (2372°F) | 1450°C (2642°F) | 1260°C (2300°F) |
| Recommended Working Temperature | 800°C (1472°F) | 1000°C (1832°F) | 1200°C (2192°F) | 1350°C (2462°F) | 950°C (1742°F) |
| Density (kg/m³ / lb/ft³) | 64 / 4.0 | 80 / 5.0 | 96 / 6.0 | 128 / 8.0 | 160 / 10.0 |
| Thermal Conductivity (W/m·K) | ≤ 0.15 | ≤ 0.12 | ≤ 0.12 | ≤ 0.16 | ≤ 0.12 |
| Linear Shrinkage (24h) | ≤ -3% @ 800°C | ≤ -3% @ 1050°C | ≤ -3% @ 1200°C | ≤ -3% @ 1350°C | ≤ -3% @ 900°C |
| Al₂O₃ (%) | 38–40 | 42–43 | 44 | 39–40 | ~0.98 |
| Al₂O₃ + SiO₂ (%) | ≥ 96 | ≥ 98 | — | — | ~69 |
| Al₂O₃ + SiO₂ + ZrO₂ (%) | — | — | ≥ 99 | ≥ 99 | — |
| ZrO₂ (%) | — | — | 5–7 | 15–17 | — |
Standard Dimensions of Ceramic Fiber Blanket Roll
To meet common industrial insulation requirements, our ceramic fiber blanket rolls are designed to fit most applications. Custom sizes are also available upon request.
| Thickness | Width | Length |
|---|---|---|
| 10 mm (0.39 in) | 610 mm (24 in) / 1220 mm (48 in) | 15000 mm (49.2 ft) |
| 12.5 mm (0.5 in) | 610 / 1220 mm | 14400 mm (47.2 ft) |
| 20 mm (0.79 in) | 610 / 1220 mm | 7200 mm (23.6 ft) |
| 25 mm (1 in) | 610 / 1220 mm | 7200 mm (23.6 ft) |
| 30 mm (1.18 in) | 610 / 1220 mm | 5000 mm (16.4 ft) |
| 40 mm (1.57 in) | 610 / 1220 mm | 4500 mm (14.8 ft) |
| 50 mm (2 in) | 610 / 1220 mm | 3600 mm (11.8 ft) |
Need Help Choosing the Right Ceramic Fiber Blanket?
As experienced ceramic fiber blanket manufacturers, LXHTR provides professional guidance based on your temperature range, installation method, and industry application.
Contact us today to get a customized solution. Custom specifications available upon request, including density, thickness, and roll size.
Contact us today to get a customized solution. Custom specifications available upon request, including density, thickness, and roll size.
Key Advantages of Ceramic Fiber Blanket
- Excellent High-Temperature Resistance: Withstands continuous temperatures up to 1350°C, ideal for ceramic fiber blankets for industrial furnaces.
- Outstanding Thermal Insulation Performance: Low thermal conductivity ensures efficient ceramic fiber blanket insulation and reduces heat loss.
- Energy Saving & Cost Reduction: Improves thermal efficiency of equipment, lowering fuel consumption and operating costs.
- Flexible Structure: Easy to cut, wrap, and install as ceramic fiber insulation blanket roll, reducing labor time.
- Fireproof & Flame Resistant: Acts as reliable ceramic fiber blanket fireproof insulation, enhancing workplace safety.
Core Design Features
01
High-Purity Alumina-Silica Composition
Made from high-quality raw materials, ensuring stable performance under extreme temperatures and improving durability.
02
Needle-Punched Fiber Structure
Provides excellent tensile strength and maintains structural integrity without binders.
03
Superior Insulation Performance
Effectively reduces heat loss, enhancing thermal efficiency and lowering operational energy costs.
04
Optimized Mechanical Properties
Balanced density and strength, including stable cold crushing strength (psi) performance for industrial applications.
Engineering Support & Customization
At LXHTR, we go beyond standard products. As experienced ceramic fiber blanket manufacturers, we provide tailored insulation solutions to meet complex industrial requirements.
1.
Quote Project
Fast and accurate quotation based on your temperature range, thickness, and application conditions.
2.
Custom Design
Custom sizes, densities, and materials including insulation ceramic fiber blanket and bio-soluble options.
3.
Fabrication
Precision cutting, layering, and composite structures to fit specific equipment or systems.
4.
Installation Guidance
Technical support for proper installation to maximize the performance of your ceramic fiber blanket insulation.
Typical Industrial Applications
Our ceramic fiber blankets are widely used across various high-temperature industries:

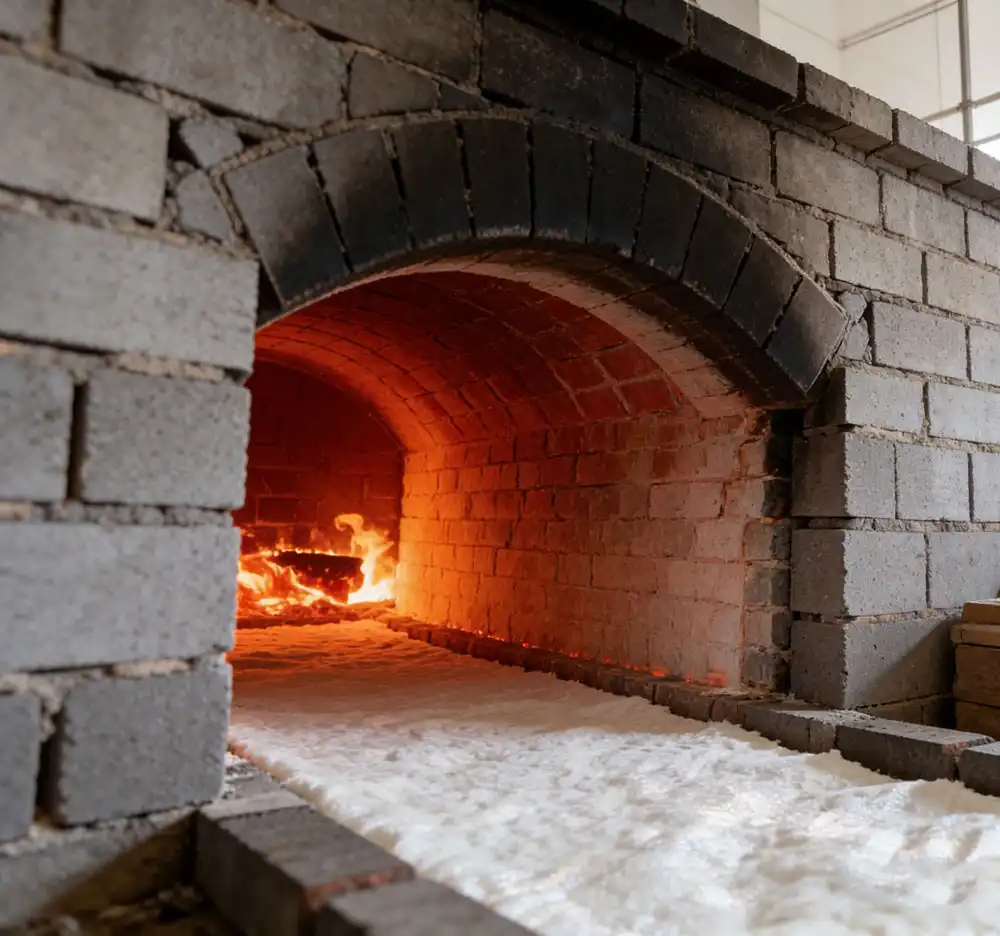

- Industrial furnaces and kilns
- Steel, aluminum, and non-ferrous metallurgy
- Petrochemical and refinery equipment
- Power plants and boiler insulation

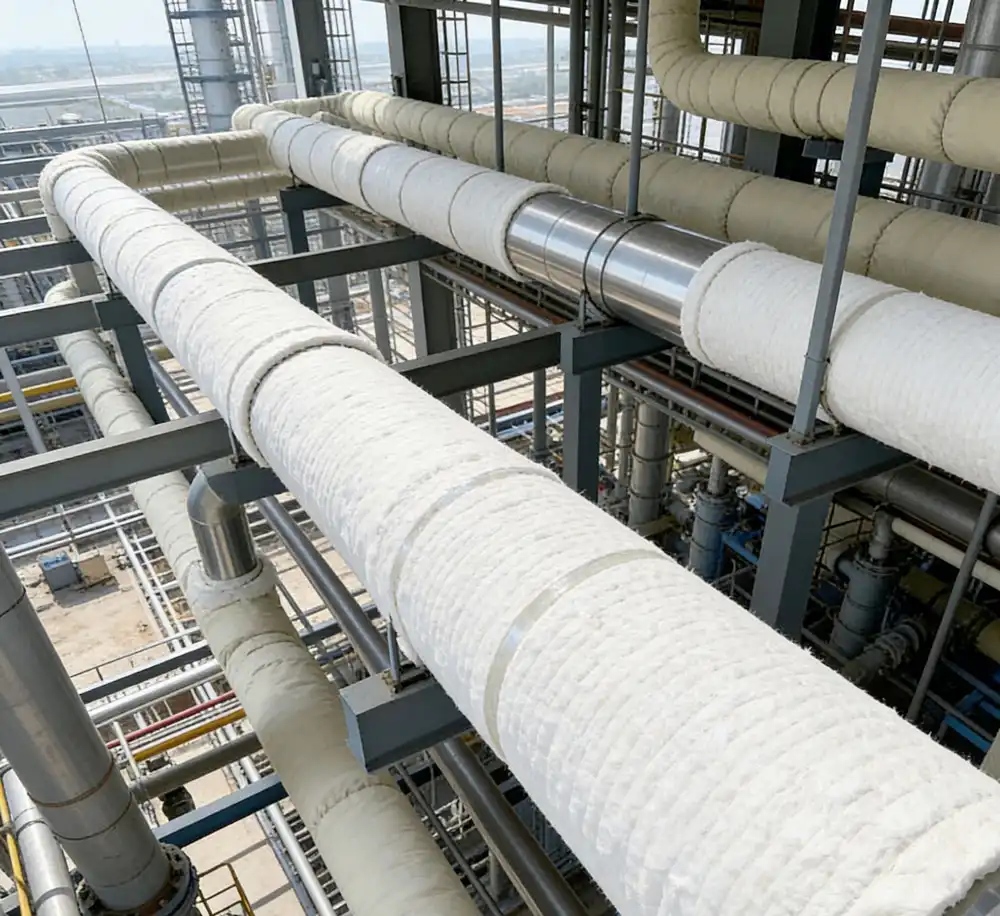

- Pipeline and duct thermal insulation
- Fire protection systems using ceramic fiber blanket fireproof insulation
Frequently Asked Questions About Ceramic Fiber Blanket
What is a ceramic fiber blanket?
A ceramic fiber blanket is a flexible, high-temperature insulation material made from alumina-silica fibers, widely used for thermal insulation and fire protection.
Can ceramic fiber blanket be supplied in rolls?
Yes, we provide ceramic fiber blanket roll and ceramic fiber insulation blanket roll formats for easy transportation and installation.
Is ceramic fiber blanket suitable for furnaces?
Absolutely. Ceramic fiber blankets for industrial furnaces are one of the most common applications due to their excellent thermal resistance.
How do I choose the right ceramic fiber blanket?
Factors include temperature rating, density, thickness, and application environment. Our team can recommend the best ceramic fiber blanket insulation solution for your needs.
Can ceramic fiber blanket be used for fireplaces, stoves, or ovens?
Yes, ceramic fiber blanket fireproof insulation is also suitable for a wide range of high-temperature applications beyond industrial systems, including:
- Wood stove baffle insulation
- Fireplaces and chimney linings
- Pellet stoves
- Furnaces and boilers
- Pizza ovens and forges
Why Choose LXHTR as Your Ceramic Fiber Blanket Manufacturer
Choosing the right ceramic fiber blanket manufacturer is not just about product quality—it's about long-term performance, cost efficiency, and reliable engineering support. At LXHTR, we deliver high-performance ceramic fiber insulation blanket solutions that balance durability, customization, and overall value.
Consistent Quality You Can Rely On
Our ceramic fiber blankets are manufactured under strict quality control to ensure stable density, thickness, and thermal performance—critical for long-term insulation in high-temperature environments.
Cost-Effective Without Compromising Performance
Through optimized material selection and efficient production, our solutions help reduce heat loss, extend service life, and lower overall operating costs—maximizing your return on investment.
Advanced Material Options for Different Needs
From standard refractory ceramic fiber blanket to environmentally friendly bio soluble ceramic fiber blanket, we provide flexible options to meet both performance and compliance requirements.
Custom Engineering for Real Industrial Conditions
We offer tailored ceramic fiber blanket roll specifications, densities, and composite structures to match your exact application—whether for furnaces, pipelines, or complex systems.
Reliable Supply for Global Projects
With stable production capacity and export experience, we ensure consistent supply and timely delivery for all ceramic fiber insulation blanket roll orders worldwide.
